Design and construction
- Hull: infusion process, vinylester resin on skincoat
- Deck: infusion process, ortho/DCPD resin
- Structures: Architecture with ISS (Integrated Structural System)
- Painting: white ISO neopentyl glycol gelcoat (Pure White)
Standart equipment
Internal compartments:
- Dinette/Galley
- Head
- Master cabin
Hull and deck equipment
- All accessories in AISI 316 stainless steel
- Self-draining anchor chain locker with double opening hatch
- 15 Kg/33 lb anchor
- 40 m galvanized steel chain
- Stainless steel anchor stem head
- 1000 W DC electric anchor windlass including remote control and control at dashboard
- 8 stainless steel deck fixed cleats
- Laminated glass windshield and side glasses
- Hardtop structure in GRP with an openable vent hatch
- Single arm windshield wiper system
- Electro-mechanical trim tabs
- Stainless steel pulpit
- Stainless steel handrails
- Stainless steel rubrail insert
- EPA compliant fuel deck intake
- Water deck intake in chrome-plated brass
- Anchor and navigation lights

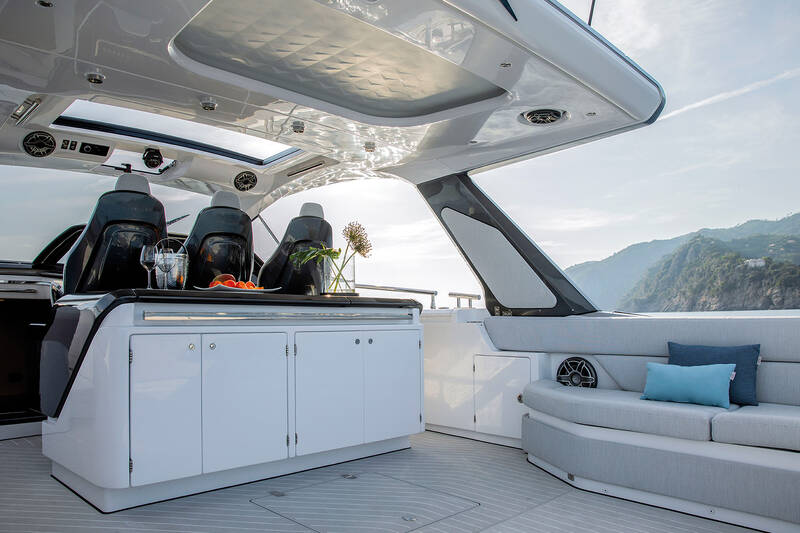

- Port and starboard cockpit grp furniture equipped with manual lids, sink and mixer tap, electric Kenyon bbq-grill, removable cutting board, work top with plexiglass cup holders, plexiglass trashcan, storage with shelves

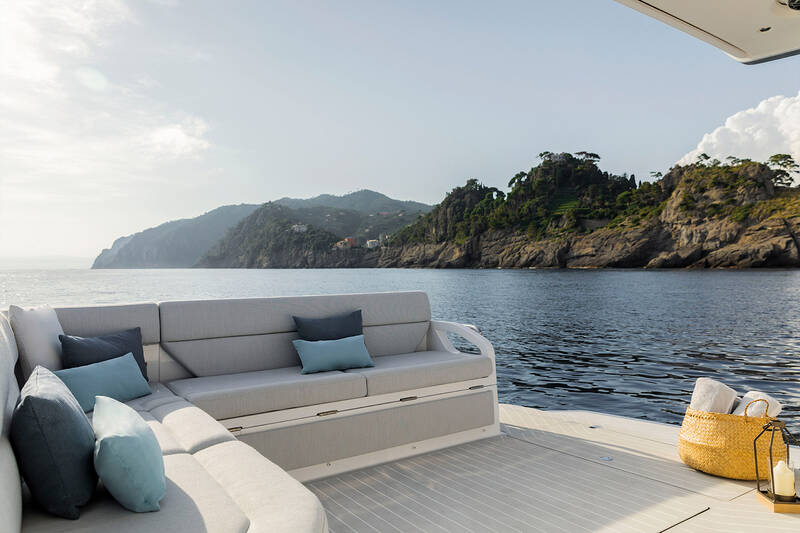

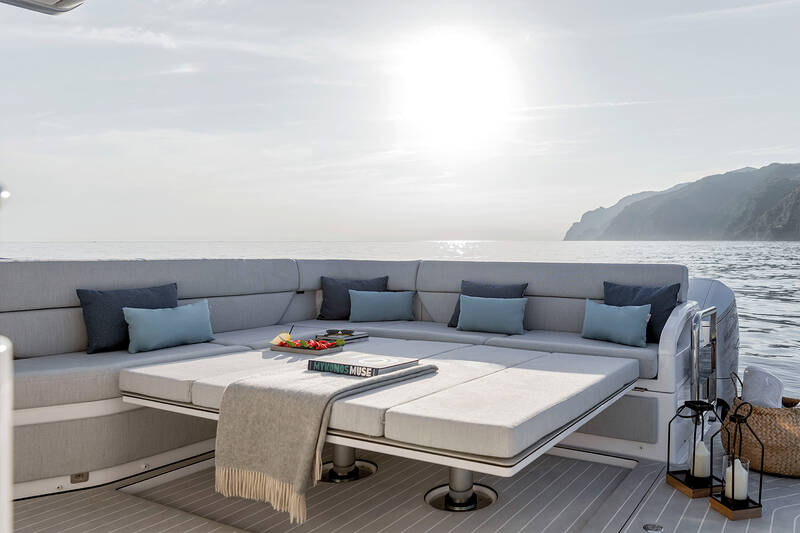

- Upholstered sofas, L-shape
- Sliding sofa in cockpit

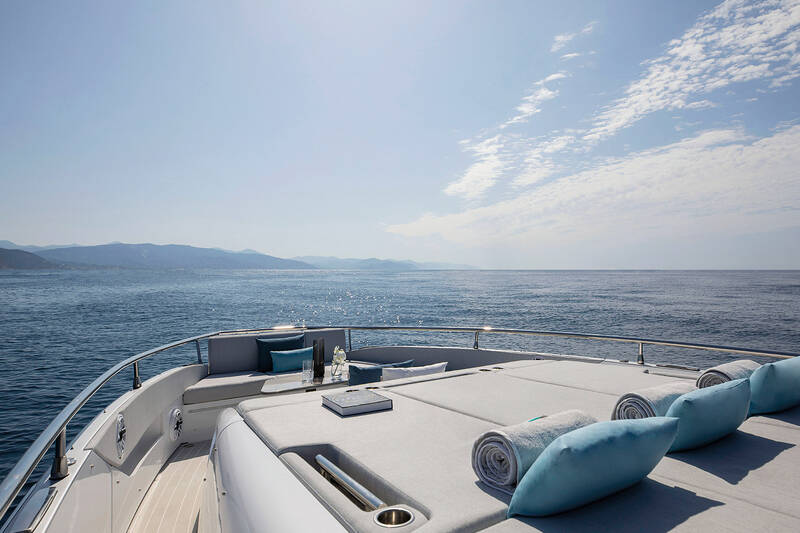

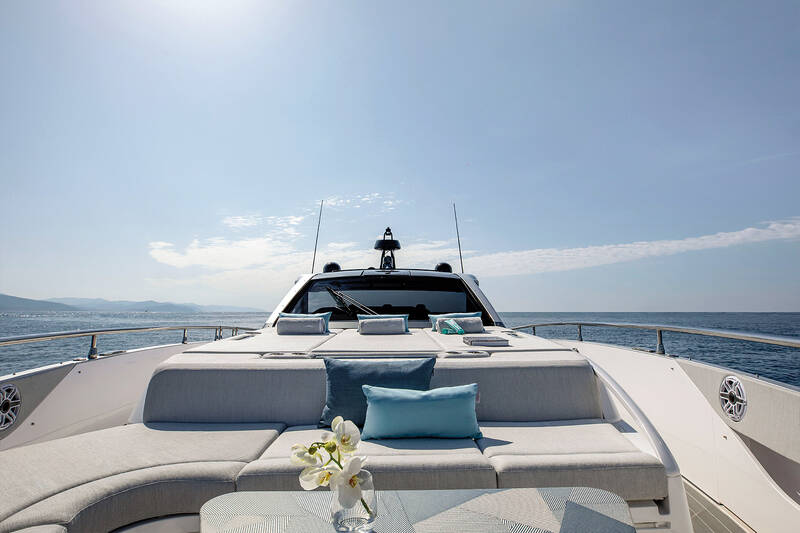

- Bow: sunbathing cushion with foldable headrest
- Bow: 2 facing sofas with foldable backrests
- Under-deck storage
- Storage in bow and cockpit sofas bases

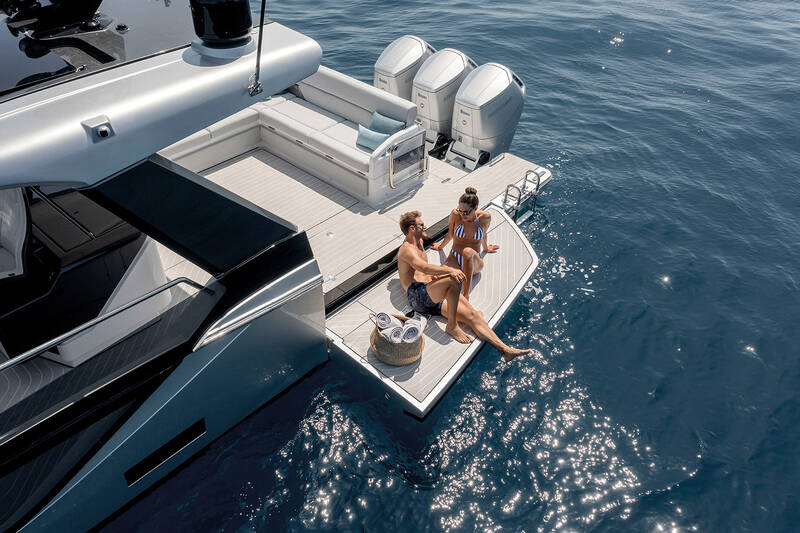

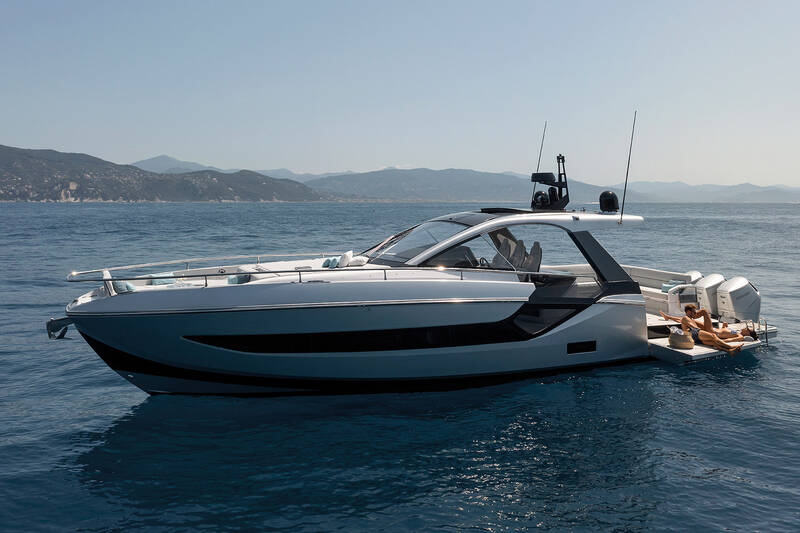

- Side folding swim platform with retractable swim ladder
- Bathroom shower with hot-cold water tap at aft platform
- 50 A/240 V AC shore socket
- Courtesy step lights
- Cockpit lights
- Dashboard Lights (red one included)
- Two lazarette lockers, one airtight, with three inspection hatches
- Remote controlled lazarette lockers fire extinguisher
- Stainless steel framed plexiglass sliding door to lower deck
- Hatch with blind and mosquito net in master cabin
- Painted aluminium portholes
- Life raft storage
- Horn
- Teak on cockpit, sidewalks and swim platform

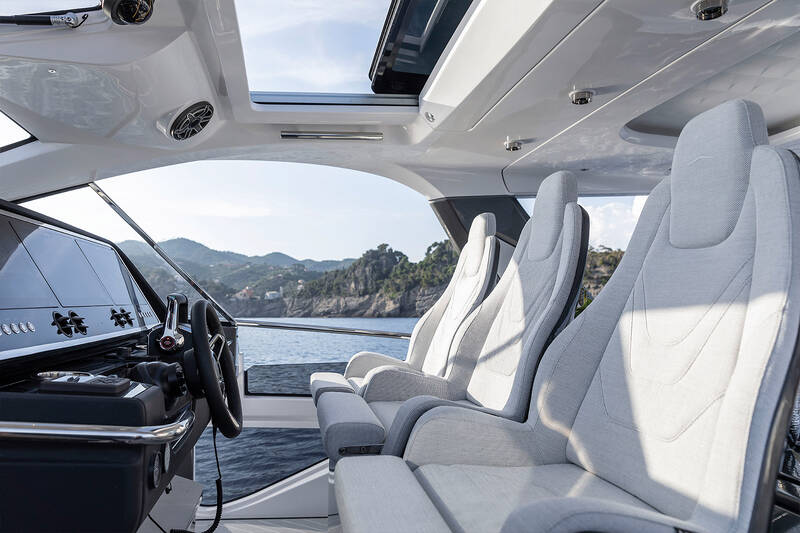

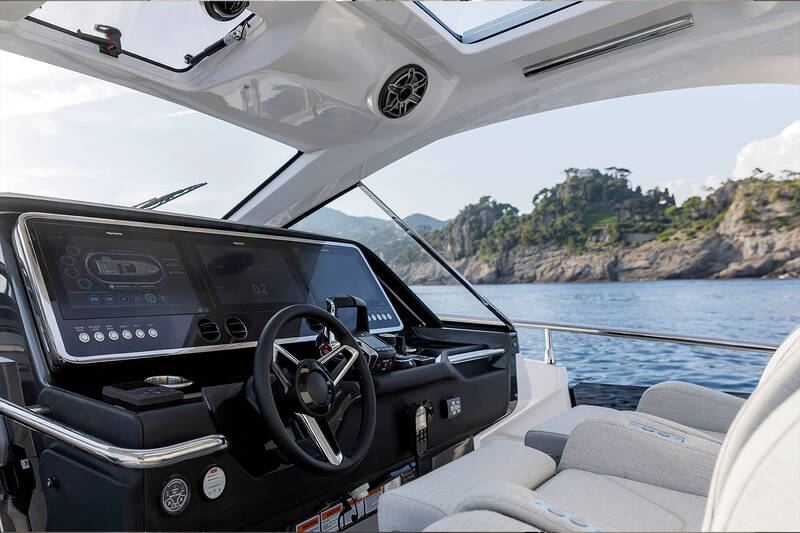

Helm station
- Three reclining seats (hi-lo/siding driver's central seat OPT) installed on GRP storage base
- Power assisted sreering
- Engines alarms,trim positions, fuel e fresh water tanks levels, depth sounder and water temperature datas input to Raymarine MFDs (OTP)
- Adjustable steering wheel with stainless stell inserts
- Magnetic compass
- Waterproof service switches
- Integrated GPS, speed-based automatic engine trim system from Mercury Marine (Active Trim)
- Integrated engine data and GPS automatic trim tab control system (Auto Glide)
- Visible main alarm indicator
- Raymarine VHF
- Raymarine Display i70
- Raymarine Chartplotter eS127 (12.1")
Decor
- Furniture: Canaletto Waallnut veneer and Grey Oak veneer available from hull number 109
- Upholstered panels and ceilings and chrome inserts
- Carpet in cabin and dinette
- Aluminum Venetian blinds
- Selection of soft goods from Azimut Brazil Decor Book

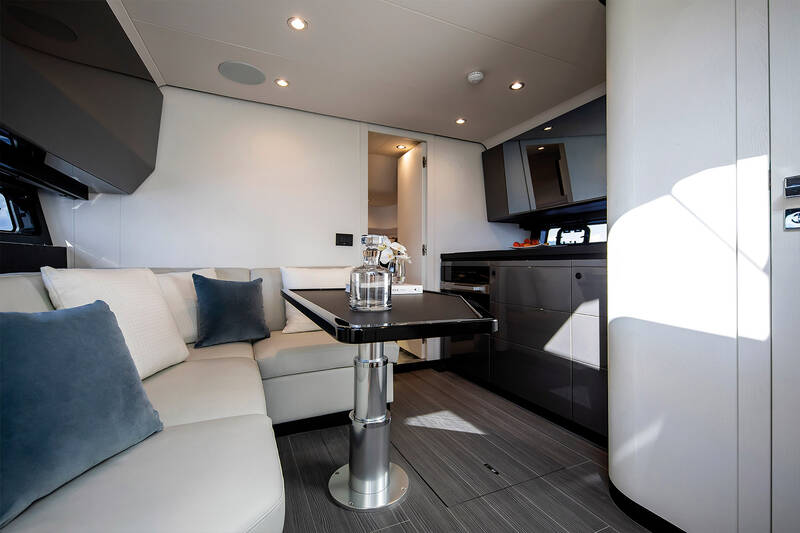

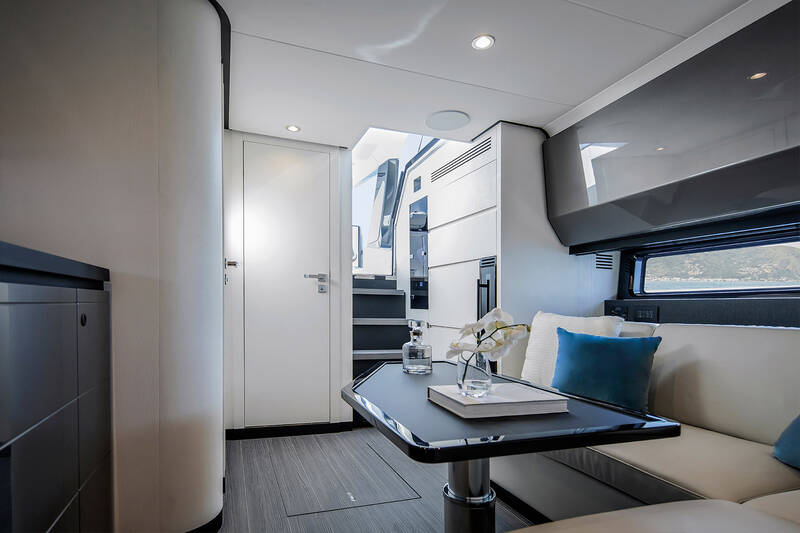

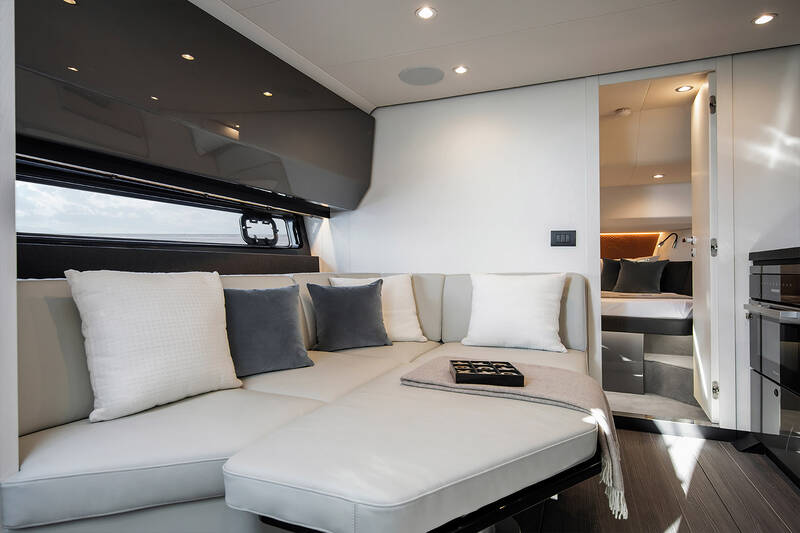

Dinette
- Carpeted lower deck, including stairs
- 4 seats sofa and pouf
- Storage under sofa, pouf and cabin deck
- Table with wooden frame
- Galley equipped with 65 l/17 US gal refrigerator, sink, fauced (hot and cold water), induction cook top, dedicated trashcan and Silestone counter top
- Electrical panel with magneto thermal or fuse safety switches for all AC and DC utilities, battery switches
- Ceiling LED spotlights
- Courtesy LED night lights
- 230 V power outlet

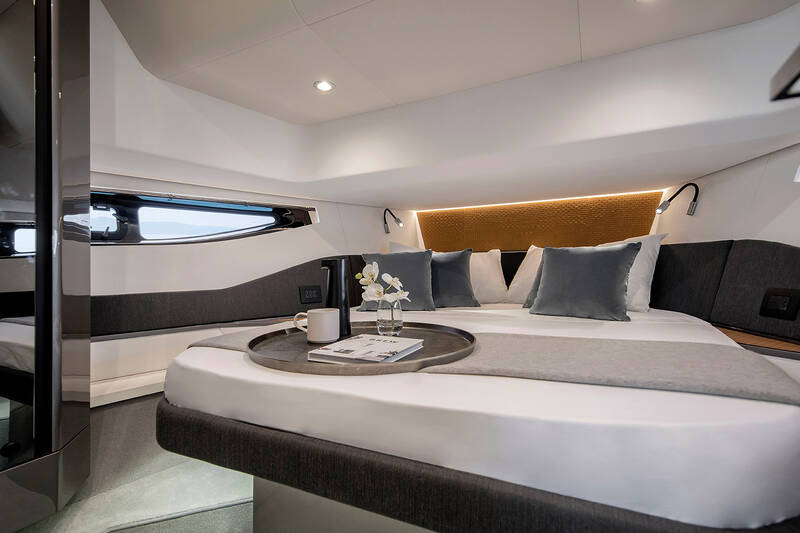

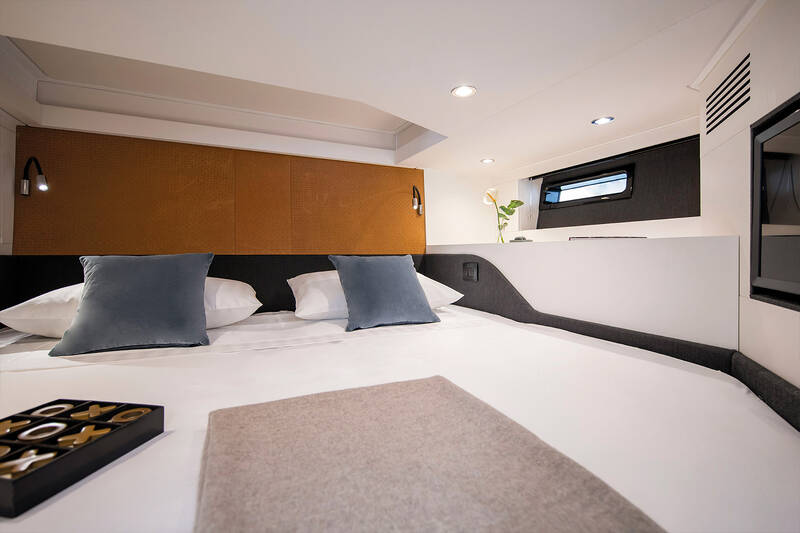

Master cabin
- Double bed with lockers, mattress, pillows
- Bed frame upholstered in synthetic leather
- Sliding wooden door
- Bed head upholstered in fabric
- Two closets
- Ceiling LED spotlights and reading lights
- 230 V power outlet

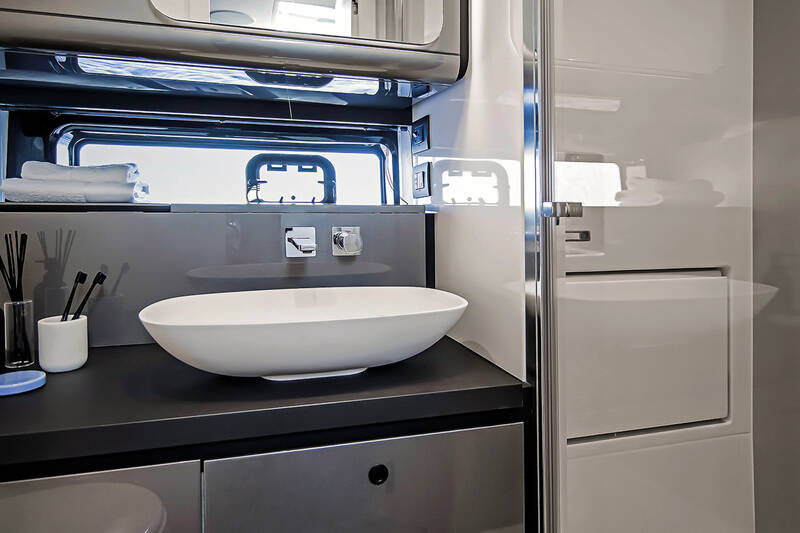

Head
- Wooden top with ceramic washbasin and mixer tap
- Set of bathroom accessories
- Wooden cabinet
- Mirror
- Separate shower with sliding curtain
- TECMA electric toilet system with built-in macerating pump
- Wooden floor
- 230 V power outlet
Electrical system
- 50 Hz electrical installation set
- 12V Engine batteries
- 12V Service batteries
- 60 A automatic battery charger
- Magneto thermal or fuse safety switches for all AC and DC utilities
- Electric battery isolator remotely operated from dinette electrical panel
- Engines Batteries parallel control at main helm
- AC/DC Digital voltmeter in dinette electrical panel
- Shore Power input polarity monitoring
- Galvanic Isolator
Lazarette lockers
- Airtight locker with generator and fuel tank in separated compartment with forced ventilation
- Lighting
- Bonding system connected to fuel tanks,seawater intakes and all underwater metals
- Safety valves on generator and air conditioning seawater intakes
- Automatic/manual fire protection systems
Fuel system
- Aluminium tank:capacity 1.300 l/343 US gal till hull number 108 and 1.800 l/475 US gal from hull number 109
- Non return valves on the fuel lines for immediate fuel shut off
- 4 fuel/water separator filters with bleeding valve
- Fuel tank vent
Water and bilge system
- 250 l/66 US gal fresh water tant with level gauge at main helm
- Automatic fresh water pump*filter-valves
- Shore Water connection by-pass
- Eectric water heater: capacity 20 l/5,3 US gal till hull number 104 and 40 l/10,5 US gal from hull number 105
- 2 automatic electric bilge pump in lower deck and lazarette locker with alarm
- 3 manual bilge pump in Dinette, airtight locker e lazarette locker
Grey water system
- 9 l/2,4 US gal grey water tank with pump for auto/manual overboard discharge
Black water system
- 106 l/28 US black water tank with pump and operated controlled overboard discharge
Generator system
- Generator Kohler 4 kW 4 EFKD gasoline 115/230 V,50Hz, low emission
- Muffler and water/gas separator exhaust system
Equipment
- 1 Owner’s manual
- 6 Mooring lines (diameter 16mm/0.6", length 10m/32'9")
- 4 Fenders with fender covers
- 1 Boat hook
- 1 Dock cable plug 50 A
